Meter-Demand Softeners
Fleck 5800SXT Meter Water Softener - 40,000 Grain Capacity
SKU: F-R40-5800SXT
Availability: In Stock
Add To Cart



Simple, reliable and easy-to-use, the Fleck 5800SXT Electronic Meter-Demand Valve is newer system used throughout the world today.

Advanced technology for advanced performance! The Fleck 5800SXT gives the user the benefit of unique programming and diagnostic features. One key NEW feature is the on-board super capacitor, which keeps the correct time during a power outage up to 48 hours! The programming is stored in memory and will not be lost due to power outages. You may also program the system’s regeneration sequence individually to maximize the efficiency and keep water use to a minimum. Another characteristic is the system keeps time electronically, so the drive motor only runs during regeneration, saving the possibility of motor burn-outs and running more reliably.

The 5800SXT Electronic Meter-Demand system can cut salt and water use by as much as 40%! Unlike timer-based systems, the meter-demand system regenerates only when necessary. The end result? Significant savings in both water and salt.**

** Compared to a system with a timer-based regeneration.


  • Continuous service flow rate of 21 GPM with a backwash of 17 GPM
  • Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system
  • Time-tested, hydraulically-balanced piston for service and regeneration
  • Optical sensor for precision cycle positioning
  • Soft water refill for a cleaner brine tank
  • Designed with double backwash for reduced hardness leakage
  • Diagnostics for historical valve performance

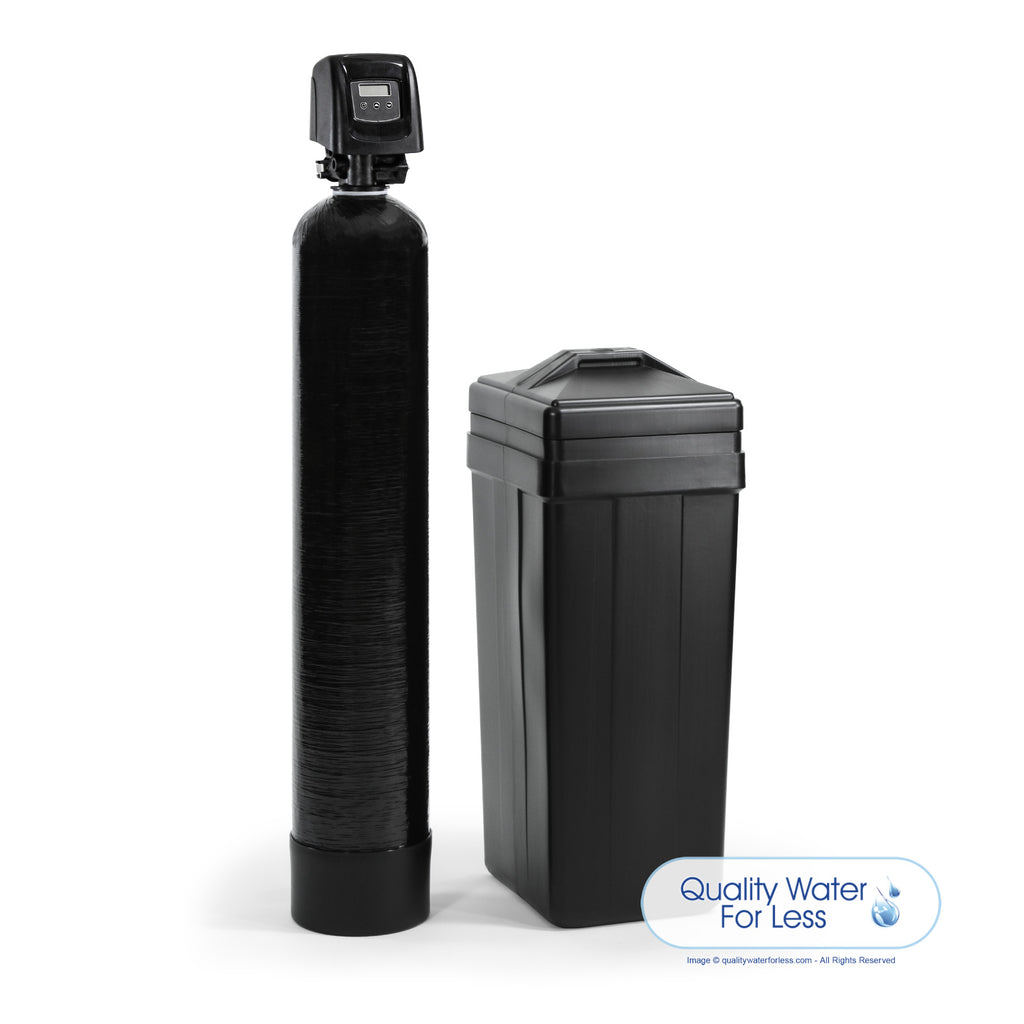

This Product Includes:

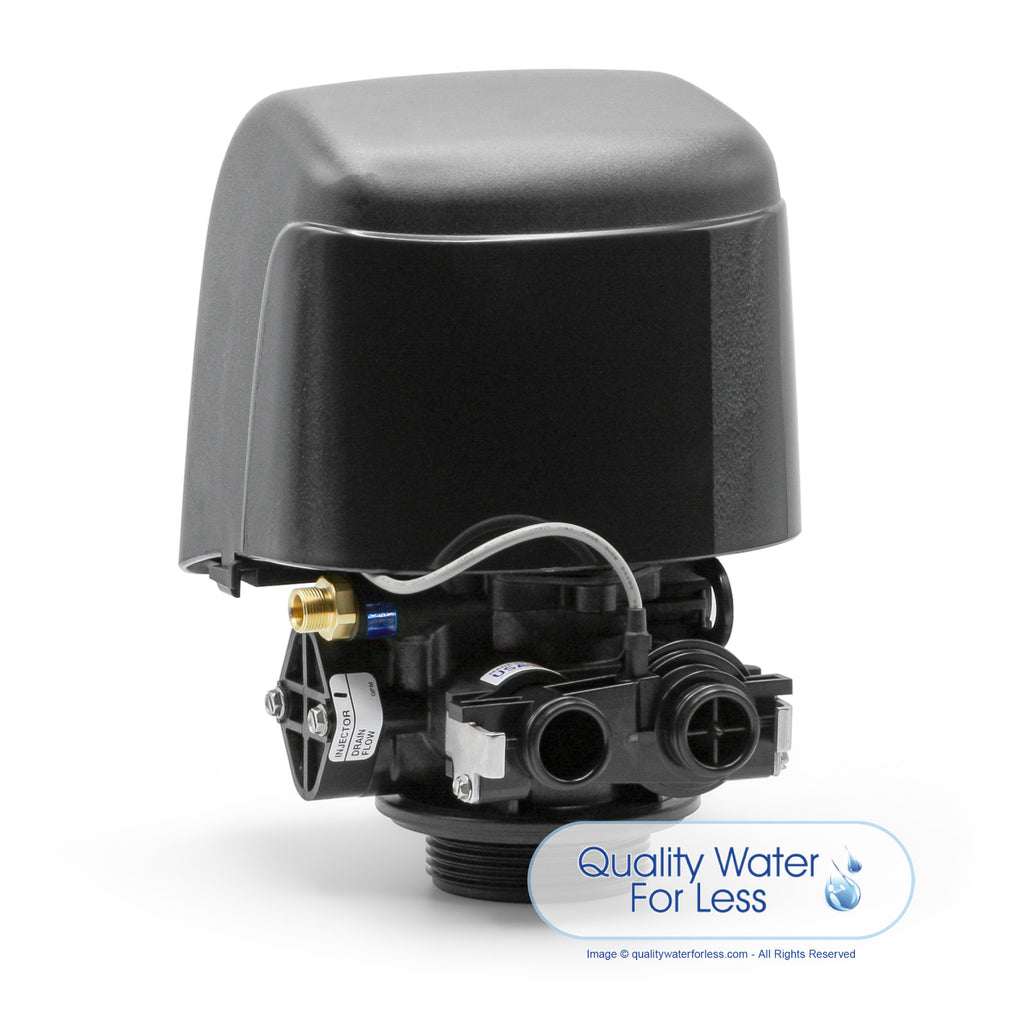

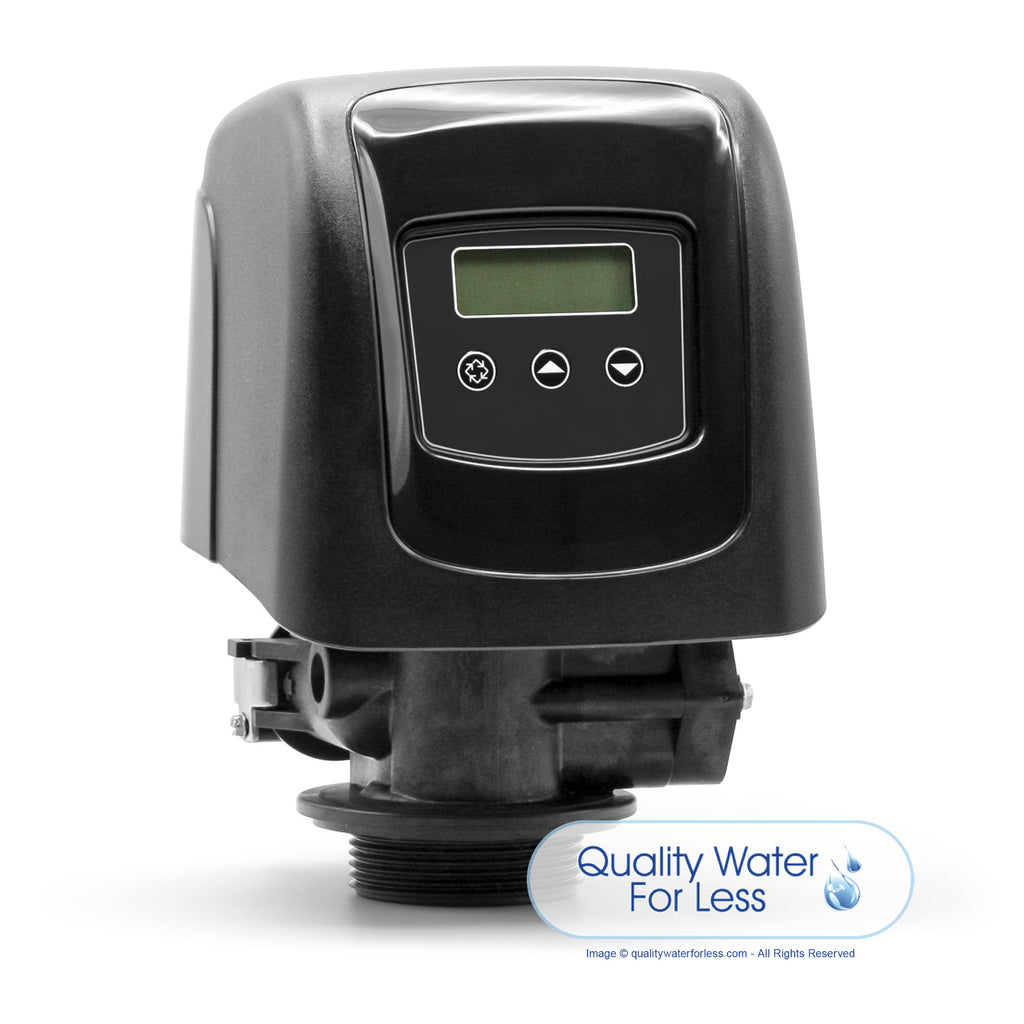

  • Fleck 5800SXT Meter Valve

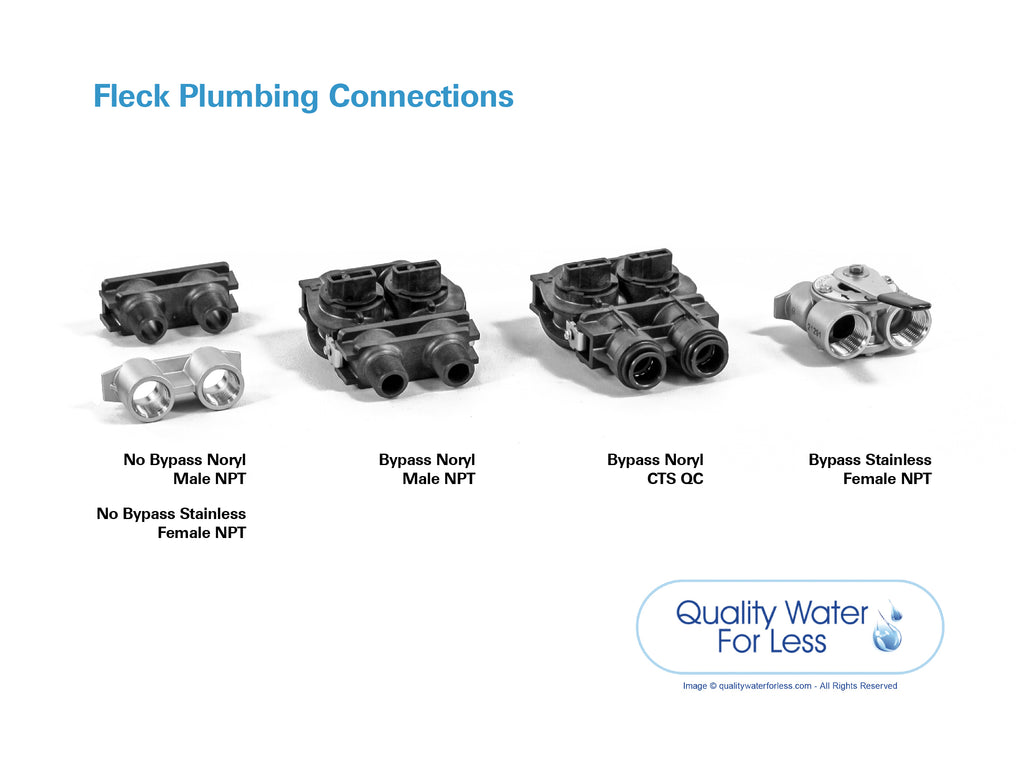

  • Plumbing Adapter (As Chosen from Options)
  • 10x44 Mineral Tank
  • 14x34 Square Salt (Brine) Tank
  • Brine Tank 2310 Safety Overflow Assembly
  • 25 Cu Ft Hi-Capacity Resin, 8% Crosslink (Other Options Available)
  • Valve-to-Brine Tank Tubing, 6 Ft x 3/8”


System Specifications:

  • Regen Type: Meter Initiated (0-9,999 gal)
  • Timer Type: Electronic
  • Cycle Type: 5-Cycle Adjustable
  • Electrical Requirements: 24vac/60hz (Plug-In Transformer Included)
  • Limited Warranty: 5 yrs Valve & 10 yrs Tanks
  • Service Flow Rate: 21 gpm
  • Backwash Rate: 17 gpm
  • Dimensions (WxDxH): 25x15x53
  • Shipping Weight: 110 lbs
