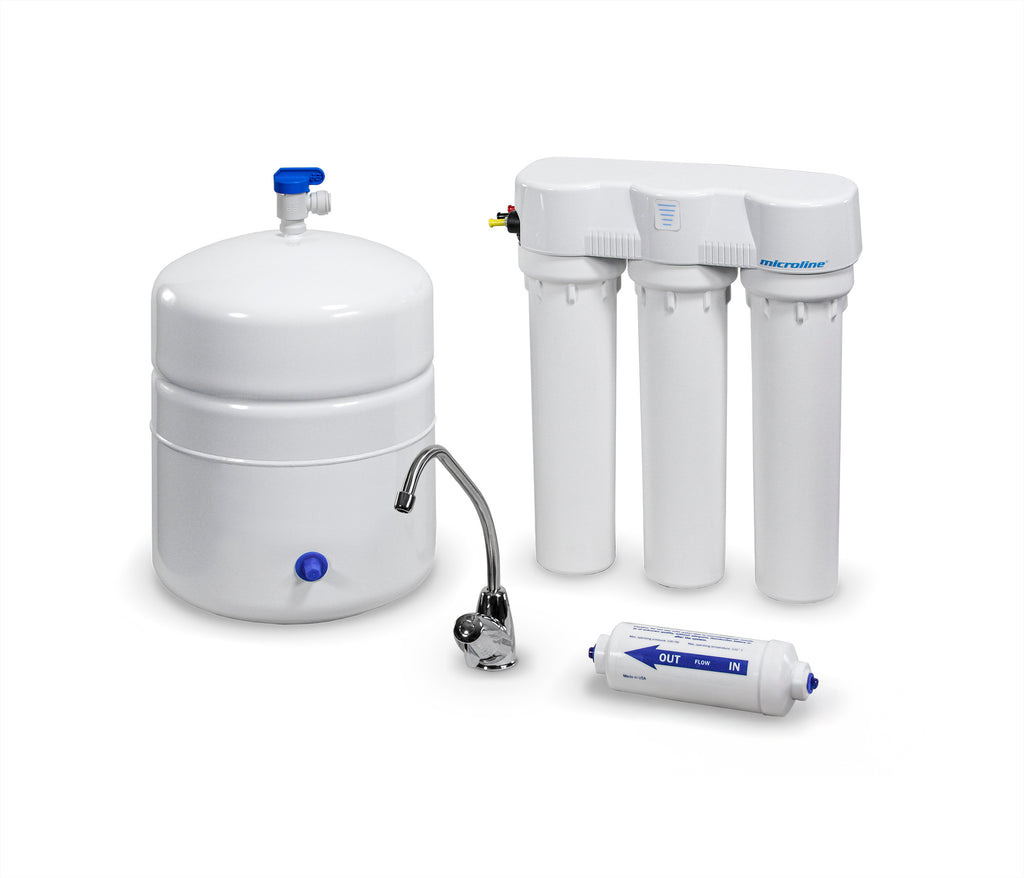

Microline TFC-435: 4-Stage Reverse Osmosis System & TFC Membrane |
|
| • | TFC 50 Gal/Day Membrane |
| • | Made for all water types (well or chlorinated city water) |
| • | Ships Complete with all filters and membrane |
| • | For use with all Microline series filters and membranes |
| • | NSF Listed |
| • | ASSEMBLED IN THE USA! |
The T.F.C. 435 R.O. Drinking Water System |
|
| The elite of the Microline Systems. The T.F.C.435 R.O. System features such benefits as four stages of filtration for the ultimate in clean, fresh tasting water as well as larger tubing to provide faster water flow to the Microline faucet. In the Microline T.F.C.435 R.O. System, water first enters the system through the Sediment/Carbon Prefilter. This specialized filter protects the automatic shut off and Membrane from clogging with debris and is also designed to reduce chlorine, to protect the refined T.F.C. Membrane. Water then travels to the operational center of the systemthe T.F.C. Membrane. This is where the Reverse Osmosis of the Microline R.O. System happens. | |
| After the Membrane, the R.O. water is routed to an Activated Carbon Filter. At this stage of filtration, the water flows through the filter very slowly to achieve prolonged contact with this specialized carbon. Water is then plumbed to the holding tank, ready for use.When you turn on the Microline faucet and draw water from the holding tank, it goes through its final stage of filtration, a Carbon Post Filter, which is designed to reduce any remaining tastes and odors before reaching your glass. This carbon imparts the final sweet polish to your water. | |
Another Microline Secret: Innovative Technology |
|
| With the unique features of a Microline R.O. System, the quality is evident in the finest of details, the smallest of parts, and naturally...in the water. The Microline R.O. System contains the patented manifold plate which directs the flow of water through each of the filtration steps. The manifold design simplifies as it enhances the system by eliminating the need for individual connections between filtration stages. | |
| The Microline R.O. System is designed to produce worryfree R.O. water with less waste. When the holding tank is full, the automatic shutoff device is triggered and signals the system to automatically cease production until more water is needed. These technologies have been the secret to the success of the Microline R.O. System. With over 60 years of water treatment experience behind the Microline name, there is a longstanding tradition of excellence and quality. | |
Microline Also Features Its Sophisticated Membrane Technology |
|
| Thin Film Composite Membrane (T.F.C.) is the technology of choice, producing high quality drinking water at a fast rate. Since T.F.C. Membranes are not chlorine resistant, the advanced Microline T.F.C. system features a sediment carbon prefilter. The carbon prefilter is designed to reduce the concentration of chlorine in feed water, in order to protect the Membrane, allowing T.F.C. systems to be installed on both municipal and private well supplied water systems. | |
Some Benefits |
|
| • | Delicious, sparkling clear drinking water and pristine cooking water |
| • | Cleanly rinsed fresh fruits and vegetables |
| • | Nourish your plants and flowers with fresh water |
| • | Cost-effective. The daily cost of bottled water will no longer be a concern |
| • | Convenient. Fresh, clean water, ready at your tap |
System Specifications |
|||
| Water Pressure: | 40 - 100 PSIG | ||
| Water Temperature: | 40 - 100°F | ||
| Water pH Range: | 34 - 11 (Optimal from 7.0 - 7.5) | ||
| Maximum TDS Level: | 2000 ppm | ||
| Hardness: | < 170 mg/L(< 10 grains/gal) | ||
| Iron: | < 0.1 mg/L | ||
| Manganese: | < 0.05 mg/L | ||
| Hydrogen Sulfide: | < 0 mg/L | ||
| Membrane Production: | 41 - 53 gal/day | ||
| Storage Tank Capacity: | ~1.8 gallons | ||
| Limited Warranty: | System - 5 years; Membrane - 1 year | ||
| System Dimensions: | 14 x 4 x 14 inches | ||
| Tank Dimensions: | 9 x 9 x 14 inches | ||
| Shipping Weight: | 20 lbs | ||
Included Accessories |
|
| R.O. Manifold Assembly |
Housings and Housing O-rings |
| Drinking Water Holding Tank |
Dispensing Faucet |
| Feed Water Saddle Valve |
Drain Clamp |
| Plastic Tubing and tube connectors |
Reverse Osmosis Membrane sealed in a plastic bag (S1229RS) |
| Sediment/Carbon Prefilter, shrink wrapped (S7028) |
Activated Carbon Post Filter, shrink wrapped (S7025) |
| InLine Activated Carbon Post Filter, shrink wrapped (S7206W-JG) |
Filter Change Wrench |
| R.O. System Cover |
Water Quality Test Kit |
Helpful Links & Downloads |
|
| • | Download -Microline Series 4-Page Brochure ~530k |
| • | Download -Microline TFC-435 Trifold Brochure ~195k |
| • | Download -Microline TFC-435 Service/Install Guide ~716k |
| • | Download -Microline TFC-435 Performance Data Sheet ~195k |
| • | Download -Microline Warranty Sheet ~54k |
CAUTION: Do not use with water that is micro biologically unsafe or of unknown quality, without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.
