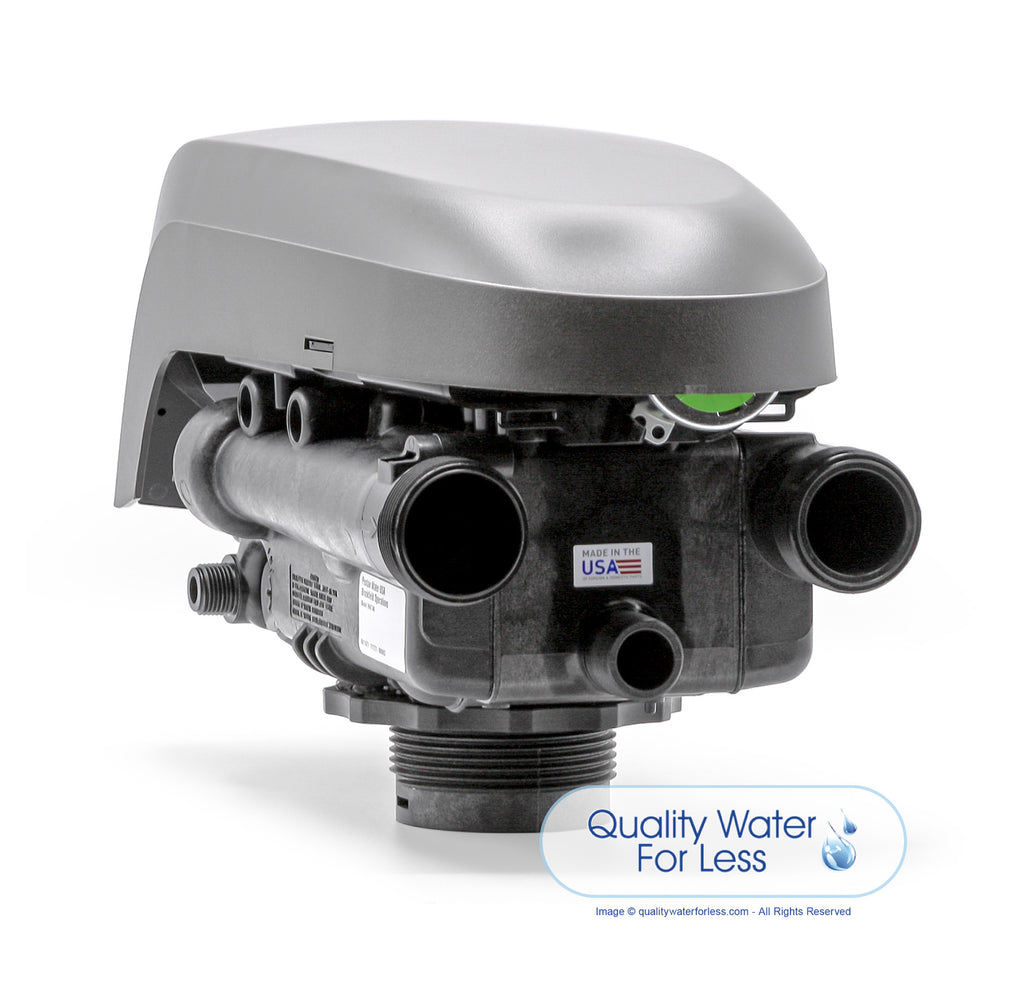

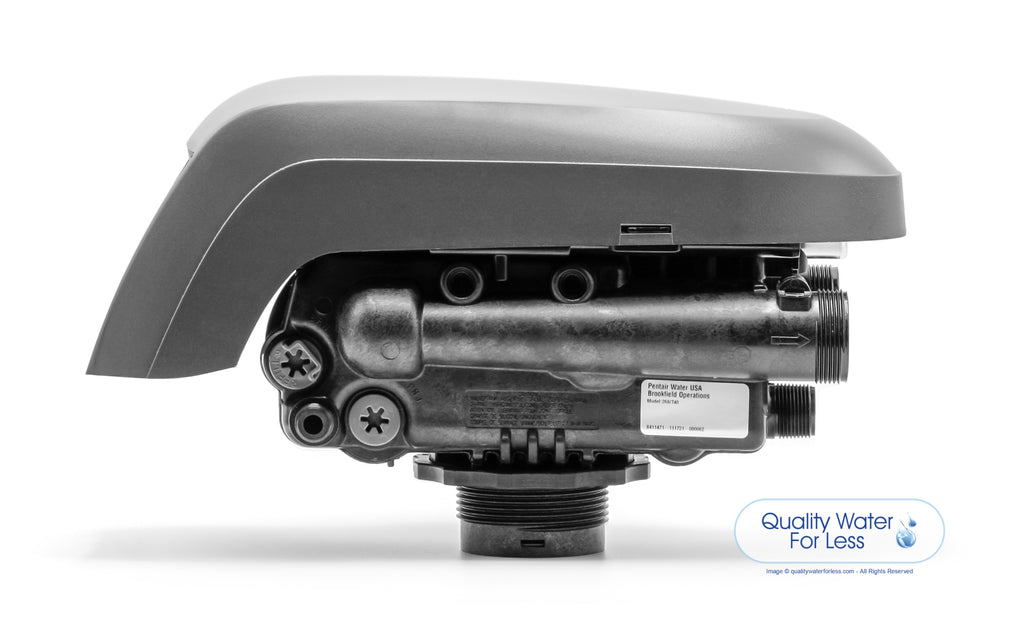

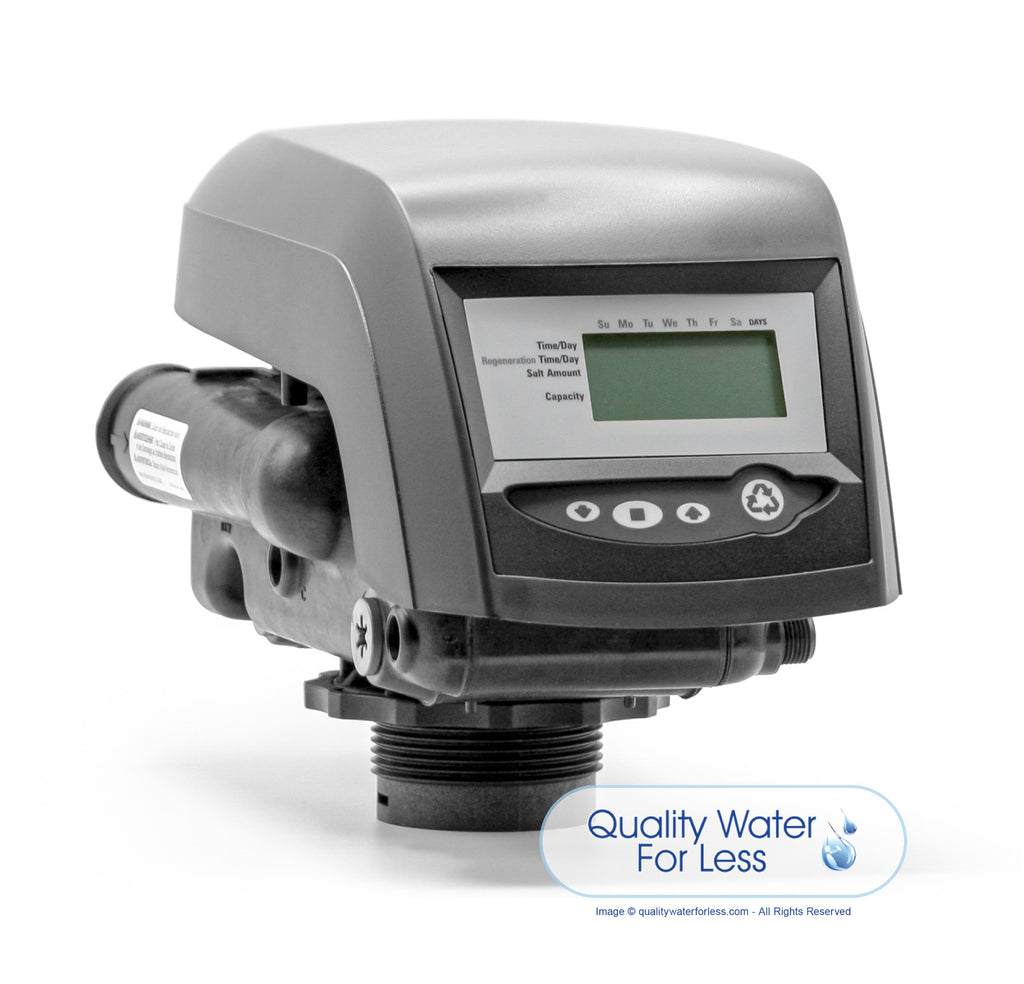

Pentair Autotrol Logix 268/760 Meter Water Softener
|Pentair Residential Filtration brings homeowners the best choice in residential water treatment systems. If youre looking for high performance, high efficiency and dependable operation, weve got the system for you. Our new Logix series controllers for our Autotrol brand valves set the standard for achieving superior water treatment for you and your family. The LOGIX 268 Series is a full 1" ported valve, allowing better flow rates, and less pressure drop than the LOGIX 255 series. This makes the LOGIX 268 the best chioce for larger homes, or light commercial applications with up to 1-1/4" plumbing.
Advanced technology for advanced performance! Key to the exceptional quality and performance of a water softener with a Autotrol LOGIX 268-760 control valve is its rugged valve disc technology. This technology features an overhead camshaft to open and close ports within the valve to effectively control service flow and regeneration. The Autotrol LOGIX 268/760 Meter-Demand system can cut salt and water use by as much as 40%! Unlike timer-based systems, the meter-demand system regenerates only when necessary. Coupled with fully-programmable regenerations, the LOGIX 268/760 can achieve even greater performance. The end result? Significant savings in both water and salt.**
** Compared to a system with timer-based regeneration.
This Product Includes
|•||LOGIX 268/760 Meter Demand Valve & Cover|
|•||256 Bypass Valve Assembly|
|•||Plumbing Adapter Kit (As Chosen From Options)|

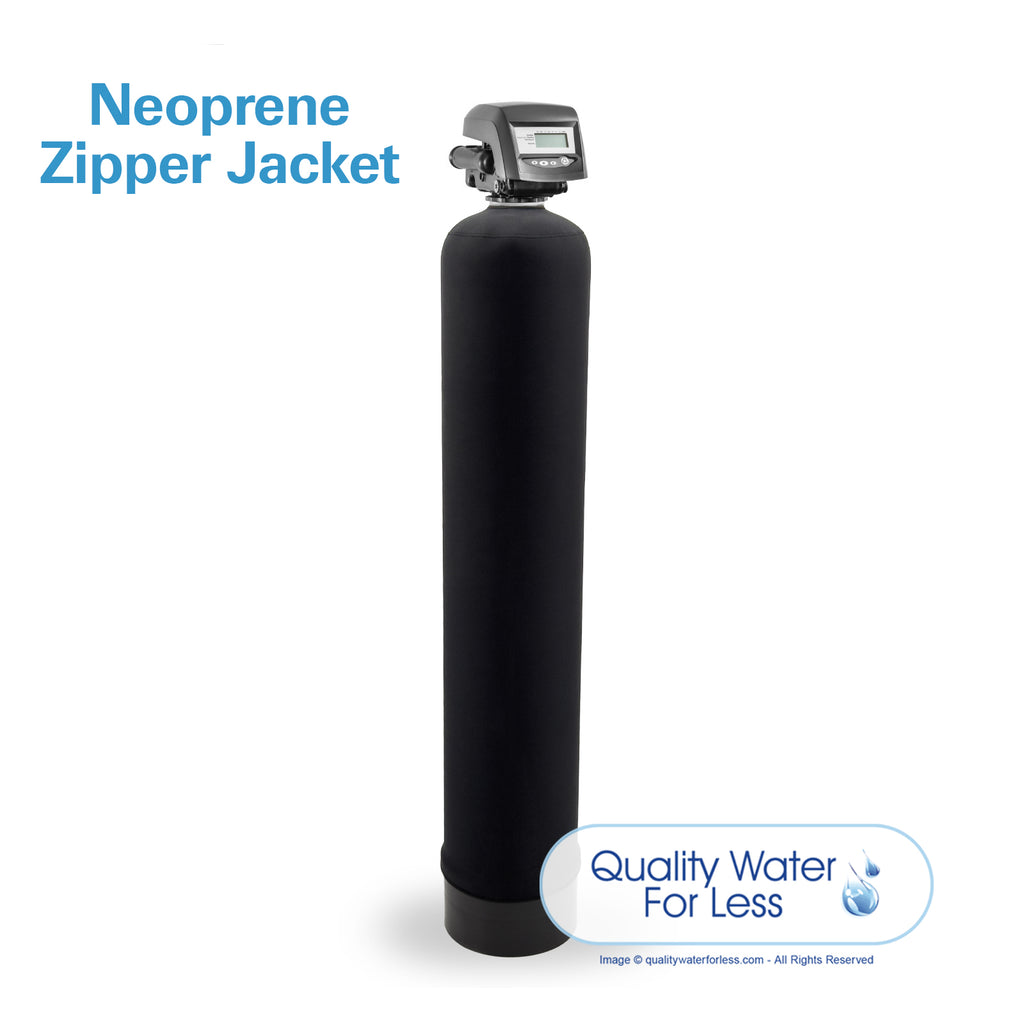

|•||8x44 Mineral Tank|
|•||15x17 Rectangular Salt Tank|
|•||0.75 Cu Ft Hi-Capacity Softener Resin Media|
|•||Valve-to-Brine Tank Tubing, 6 Ft. x 3/8"|
|•||Brine Tank Safety Overflow Assembly|
Helpful Links & Downloads
|•||Logix 268/760 Brochure|
|•||Logix 268/760 Spec Sheet|
|•||Logix 268/760 Installation Guide|
|•||Logix 268/760 Service Manual|
|•||Logix Warranty Sheet|
|Regen Type:||Meter Initiated, Adjustable|
|Cycle Type:||5-Cycle Adjustable|
|Electrical Requirements:||12v / 60hz (Plug-In Transformer Included)|
|Limited Warranty:||5 years (Valve), 10 years (Tank)|
|Service Flow Rate:||6.10 gpm, 15 psi Drop|
|Backwash Rate:||1.70 gpm|
|Dimensions (WxDxH):||23 x 15 x 53|
|Shipping Weight:||75 lbs|
