This Product Includes:

• Fleck 5600XT Meter Valve

• Plumbing Adapter (As Chosen From Options)
• 10x35 Mineral Tank
• SoftFlo Cabinet Salt Tank
• 1.25 Cu Ft Hi-Capacity Resin, 8% Crosslink
• Valve-to-Brine Tank Tubing, 6 Ft. x 3/8"
• Brine Tank 2310 Safety Overflow Assembly

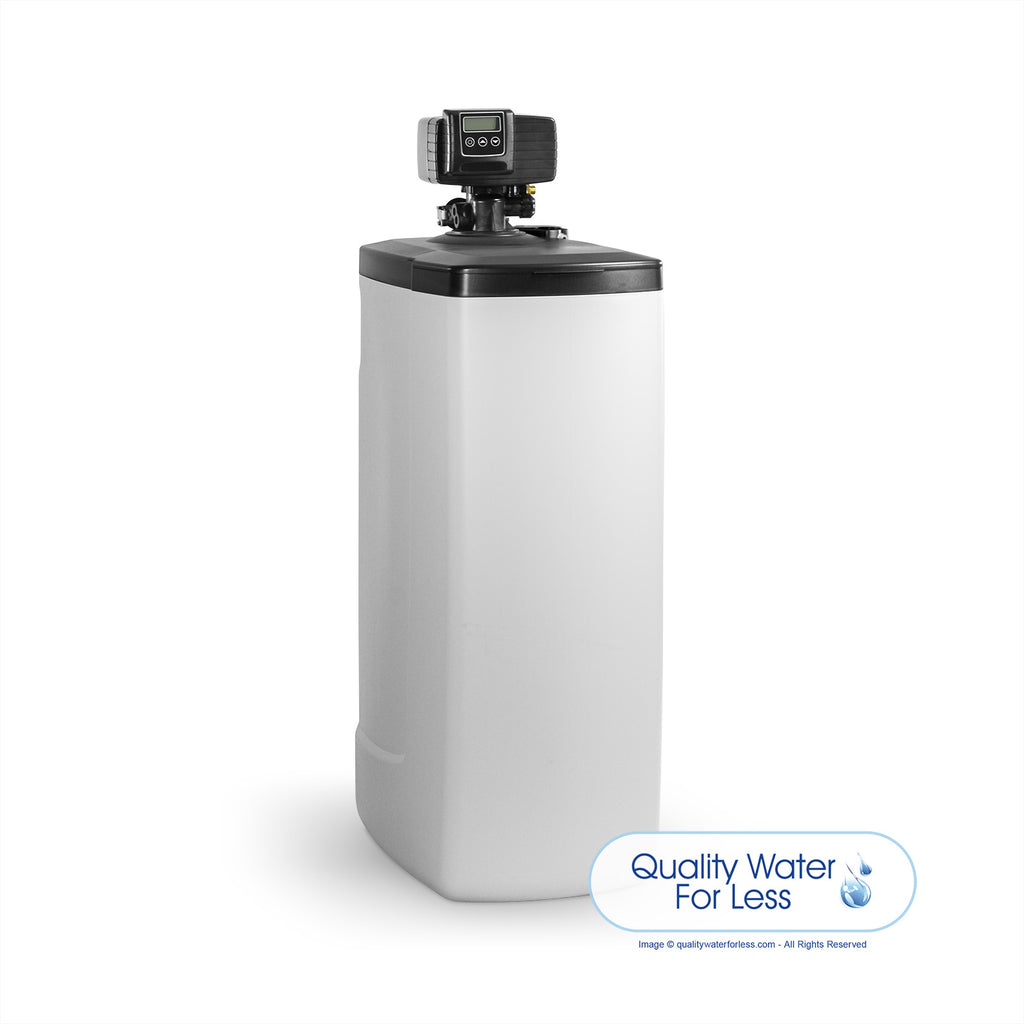

Simple, reliable, and easy-to-use, the Fleck 5600SXT Electronic Meter-Demand Valve is the newest version of one of the most popular systems used throughout the world today.

Advanced technology for advanced performance! The newest version of the rugged, time-tested Fleck 5600, the 5600SXT gives the user the benefit of unique programming and diagnostic features previously unavailable on the previous 5600SE. One key feature is the on-board capacitor, which keeps the correct time during a power outage for up to 48 hours! You may also program the system's regeneration sequence individually to maximize efficiency and keep water use to a minimum. Also, the system keeps time electronically, so the drive motor only runs during regeneration, saving the possiblity of motor burn-outs, and running more reliably.

The 5600SXT Electronic Meter-Demand system can cut salt and water use by as much as 40%! Unlike timer-based systems, the meter-demand system regenerates only when necessary. Coupled with fully-programmable regenerations, the 5600SXT can acheive even greater perforfmance. The end result? Significant savings in both water and salt.**

** Compared to a system with timer-based regeneration.

---

This Product Includes:

• Fleck 5600SXT Meter Valve

• Plumbing Adapter (As Chosen From Options)
• 10x35 Mineral Tank
• SoftFlo Cabinet Salt Tank
• 1.25 Cu Ft Hi-Capacity Resin, 8% Crosslink
• Valve-to-Brine Tank Tubing, 6 Ft. x 3/8"
• Brine Tank 2310 Safety Overflow Assembly

System Specifications:

• Regen Type: Meter Initiated (0-9,999 gal)
• Timer Type: Electronic
• Cycle Type: 5-Cycle Adjustable

• Electrical Requirements: 24vac/60hz (Plug-In Transformer Included)

• Limited Warranty: 5 yrs Valve & 10 yrs Tanks

• Service Flow Rate: 11.60 gpm @ 15 psi Drop
• Backwash Rate: 2.40 gpm
• Dimensions (WxDxH): 13x21x44

• Shipping Weight: 100 lbs

Helpful Links & Downloads:

• Download -Fleck 5600SXT Residential Brochure ~924k

• Download -Fleck 5600SXT Spec Sheet ~233k
• Download -Fleck 5600SXT Service Manual ~1,438k
• Download -Fleck 5600SXT Installation Guide ~803k
• Download -Fleck 5600SXT Warranty Sheet ~28k
