• Fleck 2510SXT Meter Valve

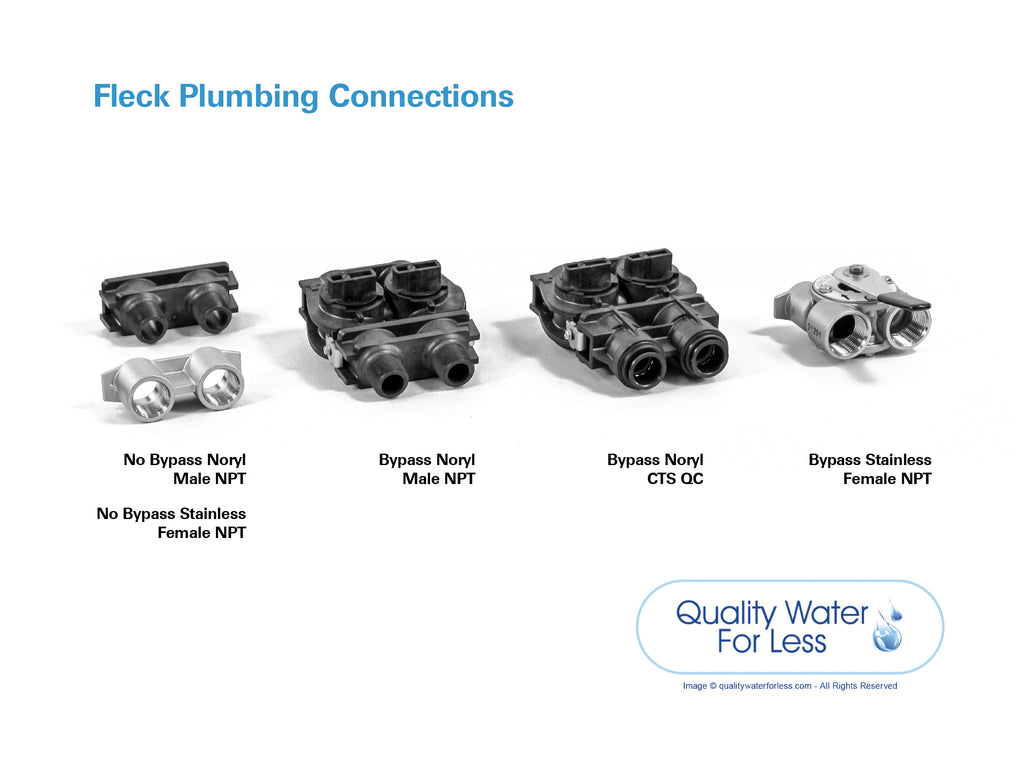

• Plumbing Adapter (As Chosen From Options)
• 8x44 Mineral Tank
• 14x34 Square Salt Tank
• 0.75 Cu Ft Hi-Capacity Resin, 8% Crosslink
• Valve-to-Brine Tank Tubing, 6 Ft. x 3/8"
• Brine Tank 2310 Safety Overflow Assembly

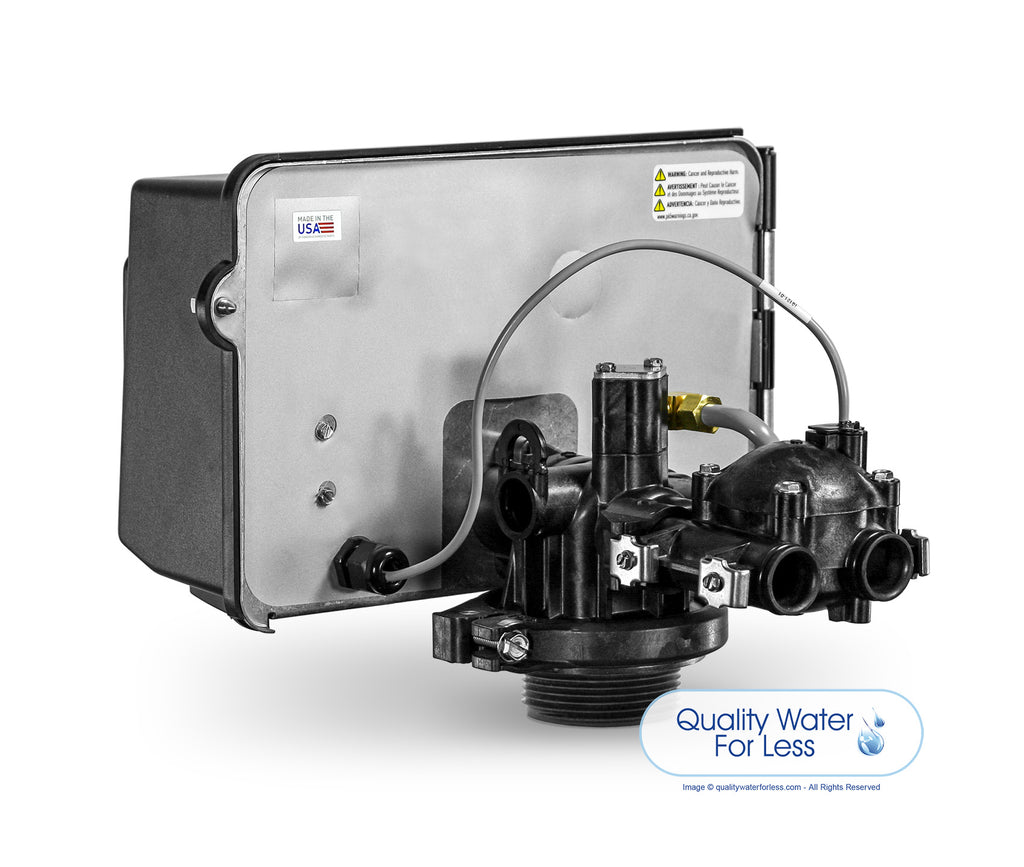

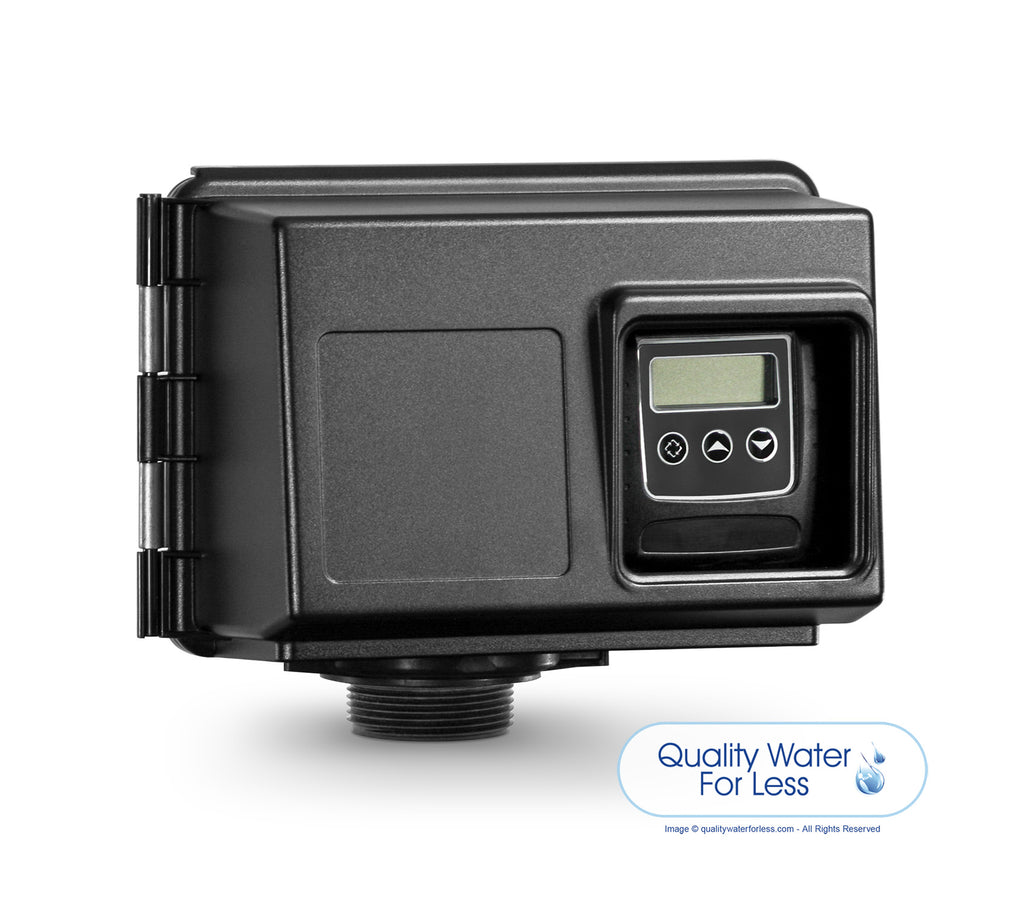

Simple and reliable, the Fleck 2510SXT Electronic Meter-Demand Valve provides larger internal porting for better flow rates and less pressure drop. Also featuring a sturdy design and separate drive motor, the 2510 offers great value and long-lasting service.

The Fleck 2510SXT combines all of the rich features of its predecessor, the 2510 Mechanical, with a simple-to-use electronic interface and the benefit of unique programming and diagnostic features previously unavailable on the previous 2510SE. One key feature is the on-board capacitor, which keeps the correct time during a power outage for up to 48 hours! Take control of all phases of your softener's operation by customizing any of the SXT Timer's many options.

This Product Includes:

• Fleck 2510SXT Meter Valve & Cover
• Plumbing Adapter (As Chosen From Options)
• 8x44 Mineral Tank
• 14x34 Square Round Salt Tank
• 0.75 Cu Ft Hi-Capacity Resin, 8% Crosslink
• Valve-to-Brine Tank Tubing, 6 Ft. x 3/8"
• Brine Tank 2310 Safety Overflow Assembly

System Specifications:

• Regen Type: Meter Initiated (0-9,999 gal)
• Timer Type: Electronic
• Cycle Type: 5-Cycle Adjustable

• Electrical Requirements: 24vac/60hz (Plug-In Transformer Included)

• Limited Warranty: 5 yrs Valve & 10 yrs Tanks

• Service Flow Rate: 9.60 gpm @ 15 psi Drop
• Backwash Rate: 1.50 gpm
• Dimensions (WxDxH): 23x15x53

• Shipping Weight: 80 lbs

• Fleck 2510SXT Spec Sheet ~237k
• Fleck SXT Timer Spec Sheet ~1,738k
• Fleck 2510 Service Manual ~1,294k
• Fleck SXT Timer Service Manual ~1,738k
• Fleck 2510SXT Installation Guide ~1,145k
• Fleck 2510SXT Warranty Sheet ~28k
